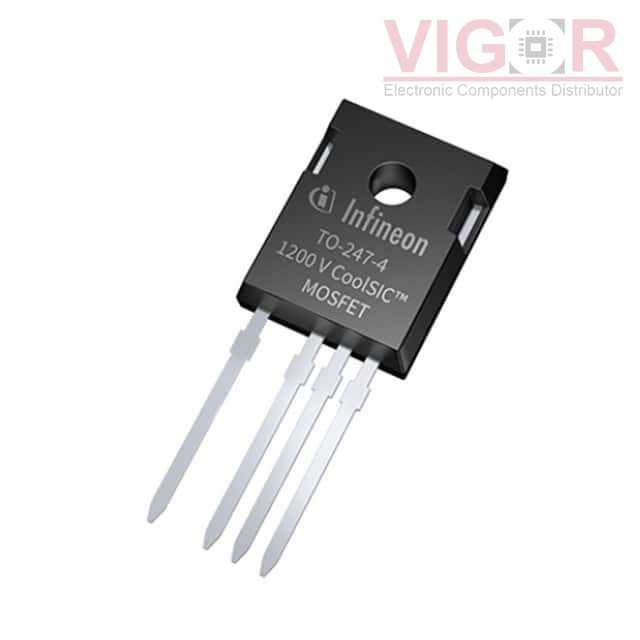

IMZ120R045M1XKSA1

Part No :: IMZ120R045M1XKSA1

Manufacturer: IR (Infineon Technologies)

Description: SICFET N-CH 1200V 52A TO247-4

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: IMZ120R045M1XKSA1 PDF

Availability: 112 pieces

Current price of IMZ120R045M1XKSA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

IMZ120R045M1XKSA1 Specifications

Type	Description
Series:	CoolSiC™
Package:	Tray
Part Status:	Active
FET Type:	N-Channel
Technology:	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss):	1200 V
Current - Continuous Drain (Id) @ 25°C:	52A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	15V
Rds On (Max) @ Id, Vgs:	59mOhm @ 20A, 15V
Vgs(th) (Max) @ Id:	5.7V @ 10mA
Gate Charge (Qg) (Max) @ Vgs:	52 nC @ 15 V
Vgs (Max):	+20V, -10V
Input Capacitance (Ciss) (Max) @ Vds:	1900 pF @ 800 V
FET Feature:	Current Sensing
Power Dissipation (Max):	228W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	PG-TO247-4-1
Package / Case:	TO-247-4

Please confirm the specifications of the products when ordering.
