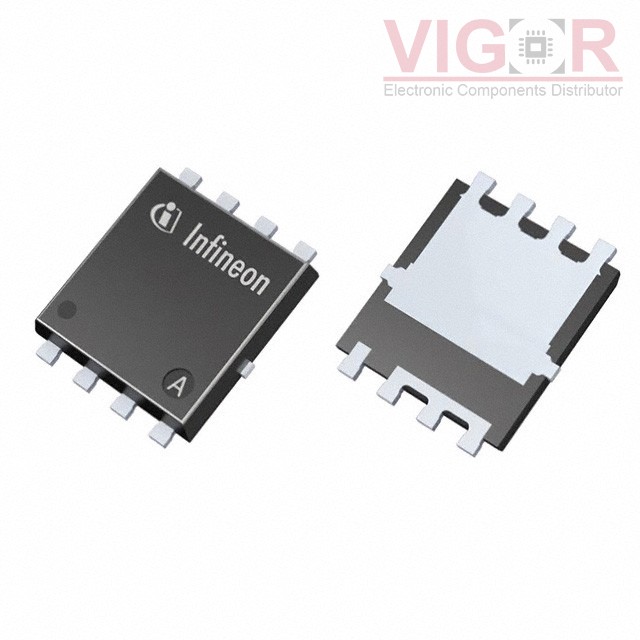

IPC100N04S51R2ATMA1

Part No :: IPC100N04S51R2ATMA1

Manufacturer: IR (Infineon Technologies)

Description: MOSFET N-CH 40V 100A 8TDSON-34

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: IPC100N04S51R2ATMA1 PDF

Availability: 4975 pieces

Current price of IPC100N04S51R2ATMA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

IPC100N04S51R2ATMA1 Specifications

Type	Description
Series:	OptiMOS™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	40 V
Current - Continuous Drain (Id) @ 25°C:	100A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	7V, 10V
Rds On (Max) @ Id, Vgs:	1.2mOhm @ 50A, 10V
Vgs(th) (Max) @ Id:	3.4V @ 90µA
Gate Charge (Qg) (Max) @ Vgs:	131 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	7650 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	150W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	PG-TDSON-8-34
Package / Case:	8-PowerTDFN
