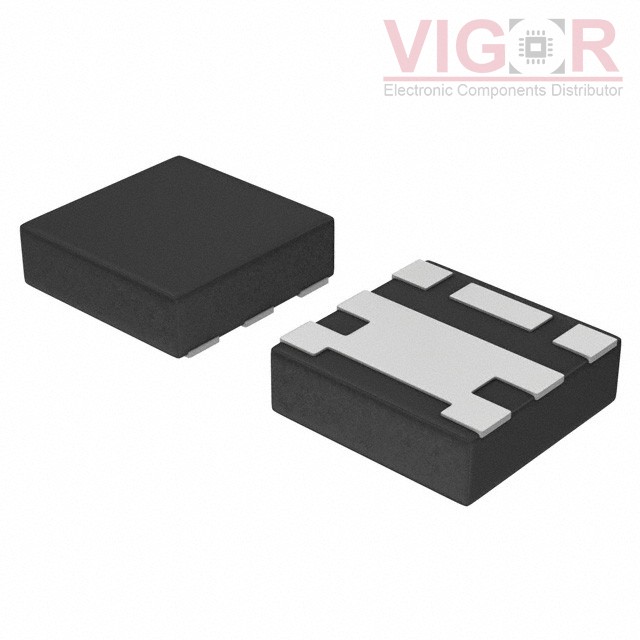

DMN6070SFCL-7

Part No :: DMN6070SFCL-7

Manufacturer: Zetex Semiconductors (Diodes Inc.)

Description: MOSFET N-CH 60V 3A X1-DFN1616-6

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: DMN6070SFCL-7 PDF

Availability: 199721000 pieces

Current price of DMN6070SFCL-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DMN6070SFCL-7 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	60 V
Current - Continuous Drain (Id) @ 25°C:	3A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	4V, 10V
Rds On (Max) @ Id, Vgs:	85mOhm @ 1.5A, 10V
Vgs(th) (Max) @ Id:	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	12.3 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	606 pF @ 20 V
FET Feature:	-
Power Dissipation (Max):	600mW (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	X1-DFN1616-6 (Type E)
Package / Case:	6-PowerUFDFN
