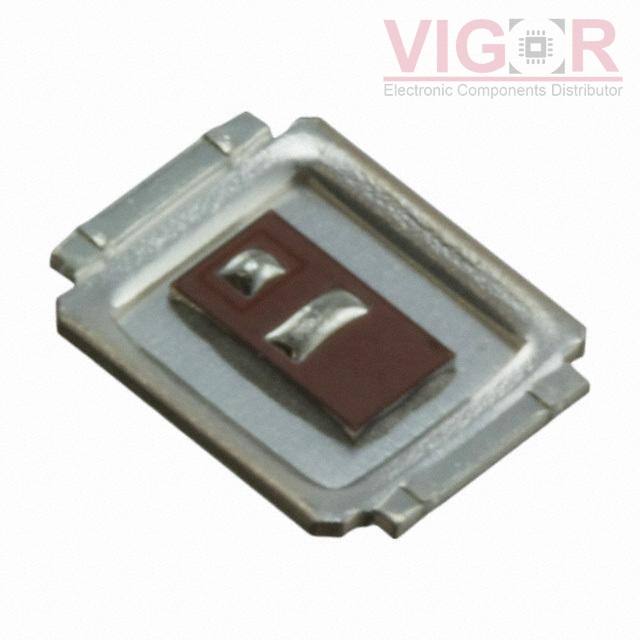

IRF6810STRPBF

Part No :: IRF6810STRPBF

Manufacturer: VIGOR

Description: PFET, 16A I(D), 25V, 0.0052OHM,

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: IRF6810STRPBF PDF

Availability: 4760 pieces

Current price of IRF6810STRPBF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

IRF6810STRPBF Specifications

Type	Description
Series:	HEXFET®
Package:	Bulk
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	25 V
Current - Continuous Drain (Id) @ 25°C:	16A (Ta), 50A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	5.2mOhm @ 16A, 10V
Vgs(th) (Max) @ Id:	2.1V @ 25µA
Gate Charge (Qg) (Max) @ Vgs:	11 nC @ 4.5 V
Vgs (Max):	±16V
Input Capacitance (Ciss) (Max) @ Vds:	1.038 pF @ 13 V
FET Feature:	-
Power Dissipation (Max):	2.1W (Ta), 20W (Tc)
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	DIRECTFET S1
Package / Case:	DirectFET™ Isometric S1
