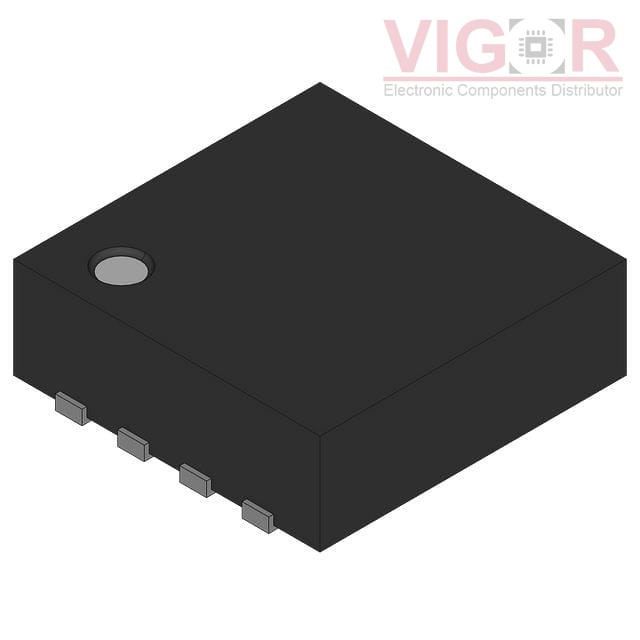

IRLHM630TRPBF

Part No :: IRLHM630TRPBF

Manufacturer: IR (Infineon Technologies)

Description: MOSFET N-CH 30V 21A/40A PQFN

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: IRLHM630TRPBF PDF

Availability: 16000 pieces

Current price of IRLHM630TRPBF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

IRLHM630TRPBF Specifications

Type	Description
Series:	HEXFET®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	30 V
Current - Continuous Drain (Id) @ 25°C:	21A (Ta), 40A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	2.5V, 10V
Rds On (Max) @ Id, Vgs:	3.5mOhm @ 20A, 4.5V
Vgs(th) (Max) @ Id:	1.1V @ 50µA
Gate Charge (Qg) (Max) @ Vgs:	62 nC @ 4.5 V
Vgs (Max):	±12V
Input Capacitance (Ciss) (Max) @ Vds:	3170 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	2.7W (Ta), 37W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	PQFN (3x3)
Package / Case:	8-VQFN Exposed Pad
