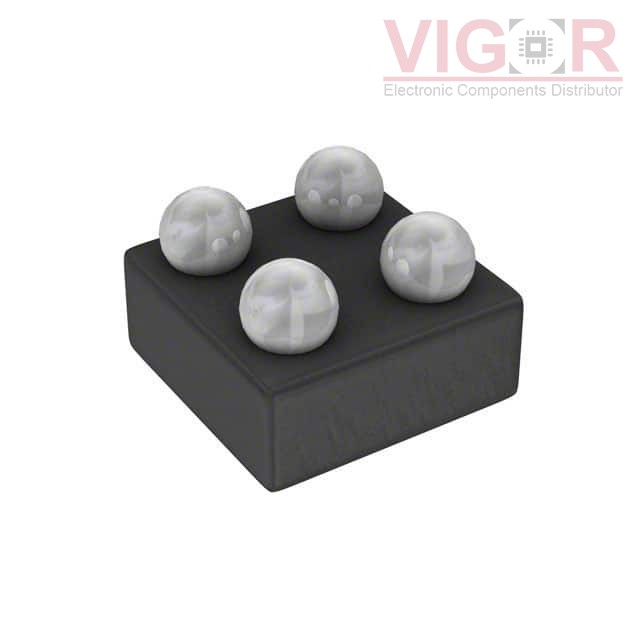

DMN1054UCB4-7

Part No :: DMN1054UCB4-7

Manufacturer: Zetex Semiconductors (Diodes Inc.)

Description: MOSFET N-CH 8V 2.7A X1-WLB0808-4

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: DMN1054UCB4-7 PDF

Availability: 332 pieces

Current price of DMN1054UCB4-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DMN1054UCB4-7 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	8 V
Current - Continuous Drain (Id) @ 25°C:	2.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	1.2V, 4.5V
Rds On (Max) @ Id, Vgs:	42mOhm @ 1A, 4.5V
Vgs(th) (Max) @ Id:	700mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	15 nC @ 4.5 V
Vgs (Max):	±5V
Input Capacitance (Ciss) (Max) @ Vds:	908 pF @ 6 V
FET Feature:	-
Power Dissipation (Max):	740mW (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	X1-WLB0808-4
Package / Case:	4-XFBGA, WLBGA

Please confirm the specifications of the products when ordering.
