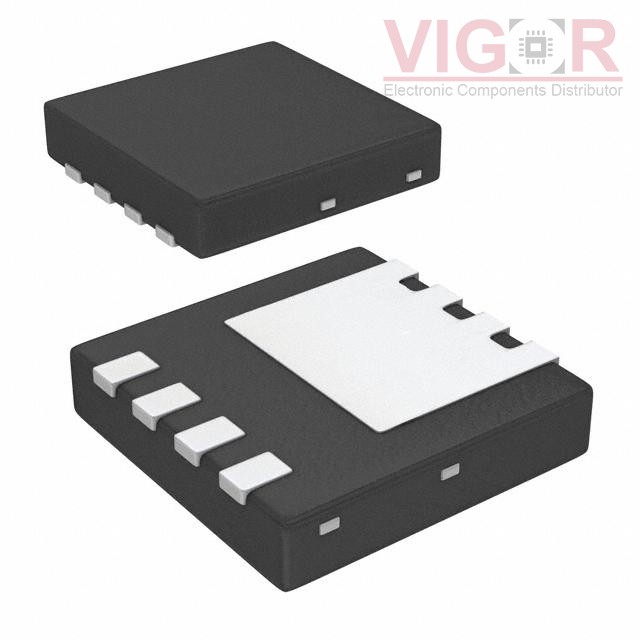

FDMC610P

Part No :: FDMC610P

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: MOSFET P-CH 12V 80A POWER33

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: FDMC610P PDF

Availability: 7156 pieces

Current price of FDMC610P is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FDMC610P Specifications

Type	Description
Series:	PowerTrench®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	12 V
Current - Continuous Drain (Id) @ 25°C:	80A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	2.5V, 4.5V
Rds On (Max) @ Id, Vgs:	3.9mOhm @ 22A, 4.5V
Vgs(th) (Max) @ Id:	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	99 nC @ 4.5 V
Vgs (Max):	±8V
Input Capacitance (Ciss) (Max) @ Vds:	1250 pF @ 6 V
FET Feature:	-
Power Dissipation (Max):	2.4W (Ta), 48W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	Power33
Package / Case:	8-PowerTDFN
