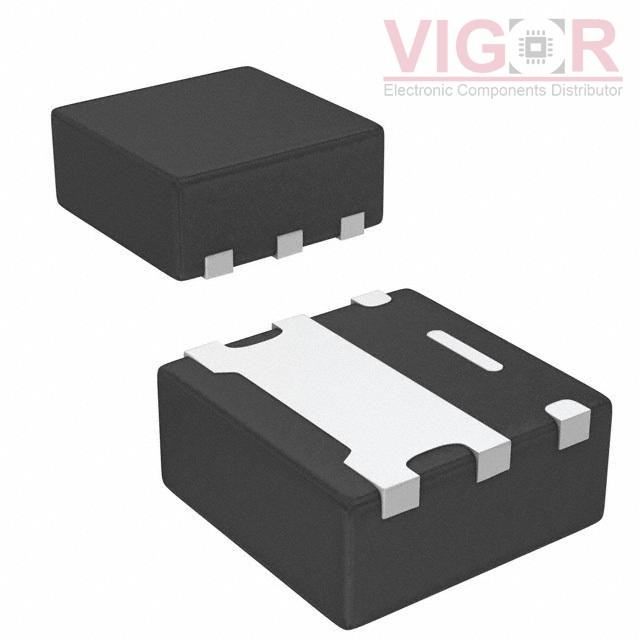

SIB457EDK-T1-GE3

Part No :: SIB457EDK-T1-GE3

Manufacturer: Vishay / Siliconix

Description: MOSFET P-CH 20V 9A PPAK SC75-6

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: SIB457EDK-T1-GE3 PDF

Availability: 8411 pieces

Current price of SIB457EDK-T1-GE3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SIB457EDK-T1-GE3 Specifications

Type	Description
Series:	TrenchFET®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	9A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V
Rds On (Max) @ Id, Vgs:	35mOhm @ 4.8A, 4.5V
Vgs(th) (Max) @ Id:	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	44 nC @ 8 V
Vgs (Max):	±8V
Input Capacitance (Ciss) (Max) @ Vds:	-
FET Feature:	-
Power Dissipation (Max):	2.4W (Ta), 13W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	PowerPAK® SC-75-6L Single
Package / Case:	PowerPAK® SC-75-6L
