C3M0120100J

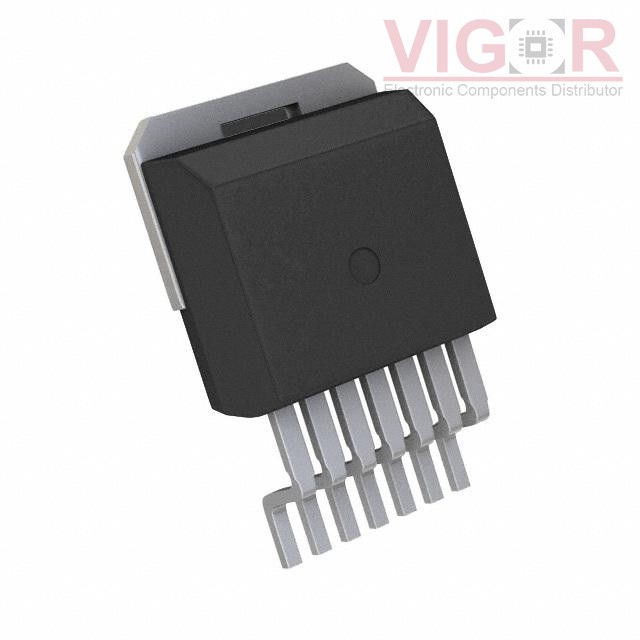

Image is for reference,
please contact us to get the real picture

Part No :: C3M0120100J

Manufacturer: Wolfspeed - a Cree company

Description: SICFET N-CH 1000V 22A D2PAK-7

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: C3M0120100J PDF

Availability: 0 pieces

Unit Price: ~~$8.20000~~

Current price of C3M0120100J is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

C3M0120100J Specifications

Type	Description
Series:	C3M™
Package:	Tube
Part Status:	Active
FET Type:	N-Channel
Technology:	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss):	1000 V
Current - Continuous Drain (Id) @ 25°C:	22A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	15V
Rds On (Max) @ Id, Vgs:	155mOhm @ 15A, 15V
Vgs(th) (Max) @ Id:	3.5V @ 3mA
Gate Charge (Qg) (Max) @ Vgs:	21.5 nC @ 15 V
Vgs (Max):	+15V, -4V
Input Capacitance (Ciss) (Max) @ Vds:	350 pF @ 600 V
FET Feature:	-
Power Dissipation (Max):	83W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	D2PAK-7
Package / Case:	TO-263-8, D²Pak (7 Leads + Tab), TO-263CA

Please confirm the specifications of the products when ordering.
