SST214 SOT-143 4L

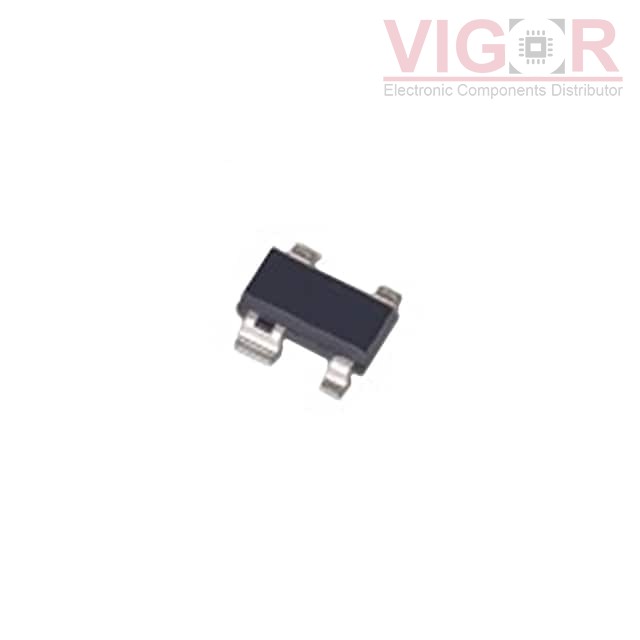

Image is for reference,
please contact us to get the real picture

Part No :: SST214 SOT-143 4L

Manufacturer: Linear Integrated Systems, Inc.

Description: HIGH SPEED N-CHANNEL LATERAL DMO

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: SST214 SOT-143 4L PDF

Availability: 990 pieces

Unit Price: ~~$3.50000~~

Current price of SST214 SOT-143 4L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SST214 SOT-143 4L Specifications

Type	Description
Series:	SST214
Package:	Tape & Reel (TR)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	50mA (Ta)
Drive Voltage (Max Rds On, Min Rds On):	5V, 25V
Rds On (Max) @ Id, Vgs:	50Ohm @ 1mA, 10V
Vgs(th) (Max) @ Id:	1.5V @ 1µA
Gate Charge (Qg) (Max) @ Vgs:	-
Vgs (Max):	±40V
Input Capacitance (Ciss) (Max) @ Vds:	-
FET Feature:	-
Power Dissipation (Max):	300mW (Ta)
Operating Temperature:	-55°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	SOT-143-4
Package / Case:	TO-253-4, TO-253AA

Please confirm the specifications of the products when ordering.
