TSM2305CX RFG

Part No :: TSM2305CX RFG

Manufacturer: TSC (Taiwan Semiconductor)

VIGOR # :: 2900315

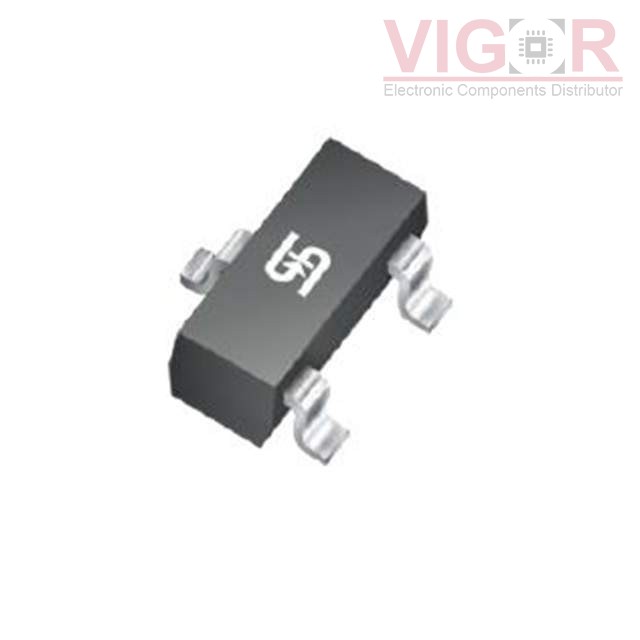

Description: MOSFET P-CHANNEL 20V 3.2A SOT23

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: TSM2305CX RFG PDF

Country of origin: -

Date code: -

TSM2305CX RFG Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	3.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	1.8V, 4.5V
Rds On (Max) @ Id, Vgs:	55mOhm @ 3.2A, 4.5V
Vgs(th) (Max) @ Id:	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	10 nC @ 10 V
Vgs (Max):	±8V
Input Capacitance (Ciss) (Max) @ Vds:	990 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	1.25W (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	SOT-23
Package / Case:	TO-236-3, SC-59, SOT-23-3
