NTLJS4114NT1G

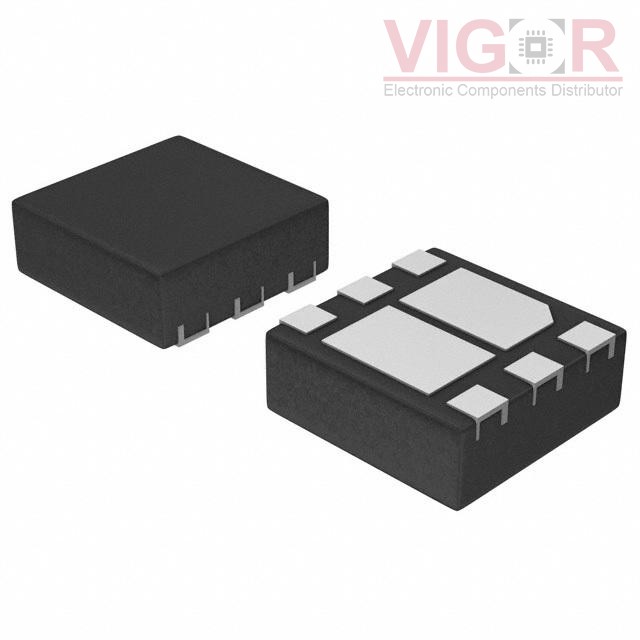

Image is for reference,
please contact us to get the real picture

Part No :: NTLJS4114NT1G

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: MOSFET N-CH 30V 3.6A 6WDFN

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: NTLJS4114NT1G PDF

Availability: 498666000 pieces

Unit Price: ~~$0.62000~~

Current price of NTLJS4114NT1G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NTLJS4114NT1G Specifications

Type	Description
Series:	µCool™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	30 V
Current - Continuous Drain (Id) @ 25°C:	3.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	1.8V, 4.5V
Rds On (Max) @ Id, Vgs:	35mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id:	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	13 nC @ 4.5 V
Vgs (Max):	±12V
Input Capacitance (Ciss) (Max) @ Vds:	650 pF @ 15 V
FET Feature:	-
Power Dissipation (Max):	700mW (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	6-WDFN (2x2)
Package / Case:	6-WDFN Exposed Pad

Please confirm the specifications of the products when ordering.
