FDMC86244

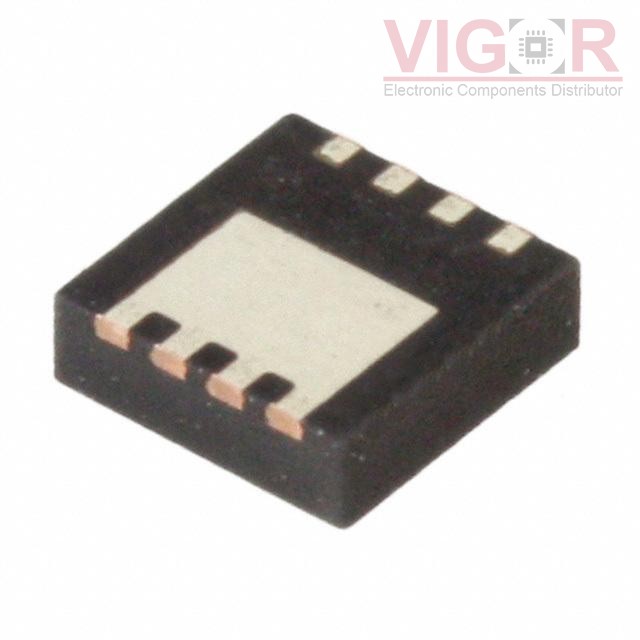

Image is for reference,
please contact us to get the real picture

Part No :: FDMC86244

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: MOSFET N-CH 150V 2.8A/9.4A 8MLP

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: FDMC86244 PDF

Availability: 0 pieces

Unit Price: ~~$0.99000~~

Current price of FDMC86244 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FDMC86244 Specifications

Type	Description
Series:	PowerTrench®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	150 V
Current - Continuous Drain (Id) @ 25°C:	2.8A (Ta), 9.4A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	6V, 10V
Rds On (Max) @ Id, Vgs:	134mOhm @ 2.8A, 10V
Vgs(th) (Max) @ Id:	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	5.9 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	345 pF @ 75 V
FET Feature:	-
Power Dissipation (Max):	2.3W (Ta), 26W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	8-MLP (3.3x3.3)
Package / Case:	8-PowerWDFN

Please confirm the specifications of the products when ordering.
