DMT3006LDK-7

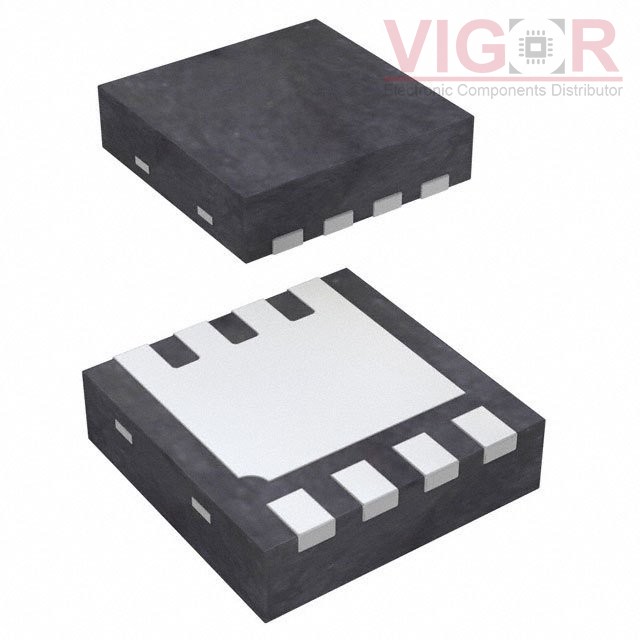

Image is for reference,
please contact us to get the real picture

Part No :: DMT3006LDK-7

Manufacturer: Zetex Semiconductors (Diodes Inc.)

Description: MOSFET N-CH 30V 17.1A/46.2A 8DFN

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: DMT3006LDK-7 PDF

Availability: 3 pieces

Unit Price: ~~$0.49000~~

Current price of DMT3006LDK-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DMT3006LDK-7 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	30 V
Current - Continuous Drain (Id) @ 25°C:	17.1A (Ta), 46.2A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	6.5mOhm @ 12A, 10V
Vgs(th) (Max) @ Id:	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	22.6 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	1320 pF @ 15 V
FET Feature:	-
Power Dissipation (Max):	1.1W (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	V-DFN3030-8
Package / Case:	8-PowerWDFN
