NVTFS5826NLTWG

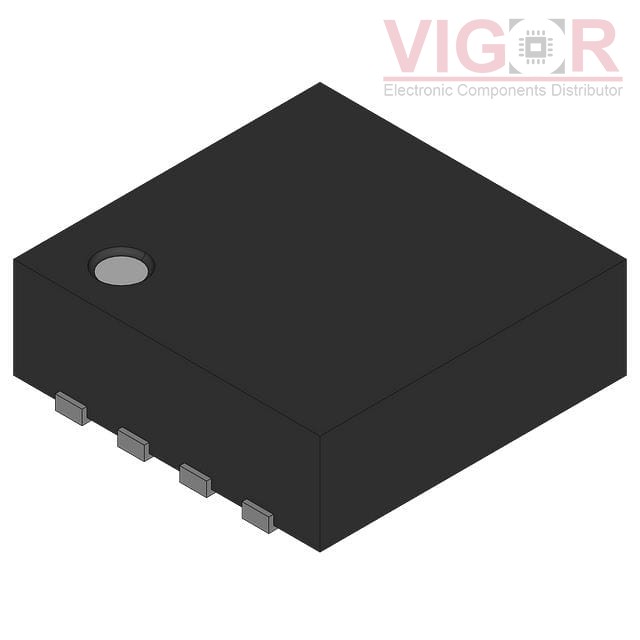

Image is for reference,
please contact us to get the real picture

Part No :: NVTFS5826NLTWG

Manufacturer: VIGOR

Description: MOSFET N-CH 60V 7.6A 8WDFN

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: NVTFS5826NLTWG PDF

Availability: 23435 pieces

Unit Price: ~~$0.34000~~

Current price of NVTFS5826NLTWG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NVTFS5826NLTWG Specifications

Type	Description
Series:	Automotive, AEC-Q101
Package:	Bulk
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	60 V
Current - Continuous Drain (Id) @ 25°C:	7.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	-
Rds On (Max) @ Id, Vgs:	24mOhm @ 10A, 10V
Vgs(th) (Max) @ Id:	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	16 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	850 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	3.2W (Ta)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	8-WDFN (3.3x3.3)
Package / Case:	8-PowerWDFN
