RTF015P02TL

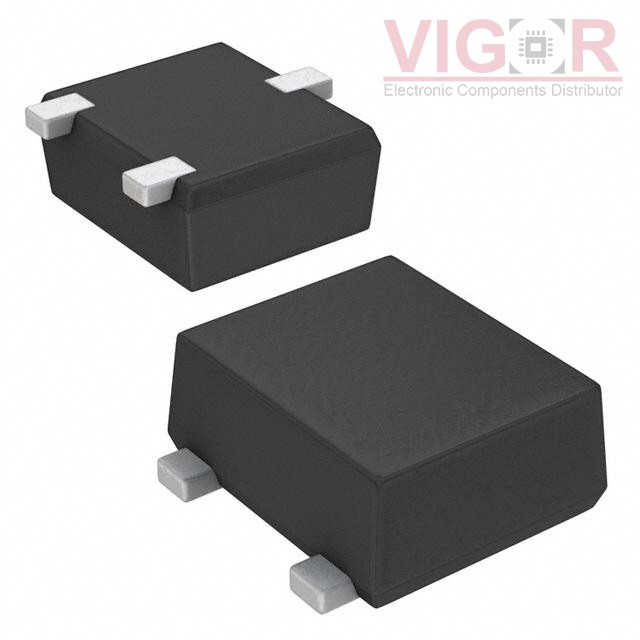

Image is for reference,
please contact us to get the real picture

Part No :: RTF015P02TL

Manufacturer: ROHM Semiconductor

Description: MOSFET P-CH 20V 1.5A TUMT3

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: RTF015P02TL PDF

Availability: 0 pieces

Unit Price: ~~$0.68000~~

Current price of RTF015P02TL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

RTF015P02TL Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Not For New Designs
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	1.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	2.5V, 4.5V
Rds On (Max) @ Id, Vgs:	135mOhm @ 1.5A, 4.5V
Vgs(th) (Max) @ Id:	2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	5.2 nC @ 4.5 V
Vgs (Max):	±12V
Input Capacitance (Ciss) (Max) @ Vds:	560 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	800mW (Ta)
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	TUMT3
Package / Case:	3-SMD, Flat Lead
