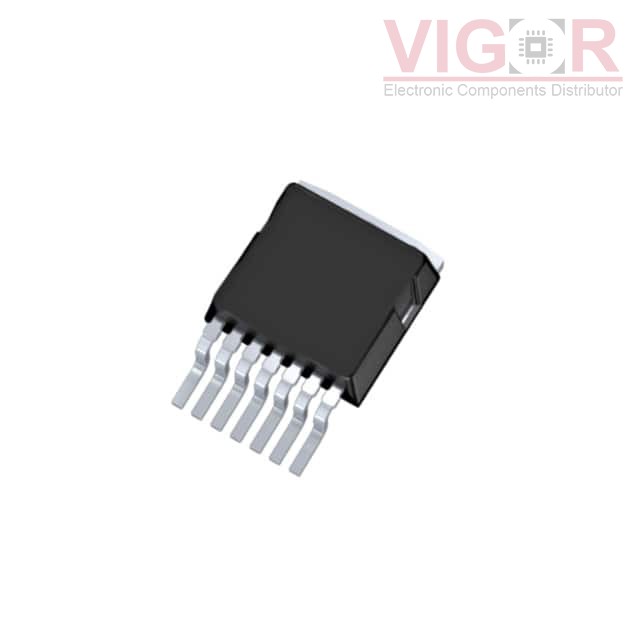

IMBG120R030M1HXTMA1

Part No :: IMBG120R030M1HXTMA1

Manufacturer: IR (Infineon Technologies)

VIGOR # :: 2900676

Description: TRANS SJT N-CH 1.2KV 56A TO263

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: IMBG120R030M1HXTMA1 PDF

Country of origin: -

Date code: -

IMBG120R030M1HXTMA1 Specifications

Type	Description
Series:	CoolSiC™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	SiC (Silicon Carbide Junction Transistor)
Drain to Source Voltage (Vdss):	1.2 kV
Current - Continuous Drain (Id) @ 25°C:	56A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	-
Rds On (Max) @ Id, Vgs:	41mOhm @ 25A, 18V
Vgs(th) (Max) @ Id:	5.7V @ 11.5mA
Gate Charge (Qg) (Max) @ Vgs:	63 nC @ 18 V
Vgs (Max):	+18V, -15V
Input Capacitance (Ciss) (Max) @ Vds:	2.29 nF @ 800 V
FET Feature:	Standard
Power Dissipation (Max):	300W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	PG-TO263-7-12
Package / Case:	TO-263-8, D²Pak (7 Leads + Tab), TO-263CA

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Jan 24 - Jan 28 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$28.34~~	~~$28.34~~

Current price of IMBG120R030M1HXTMA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
