TSM9409CS RLG

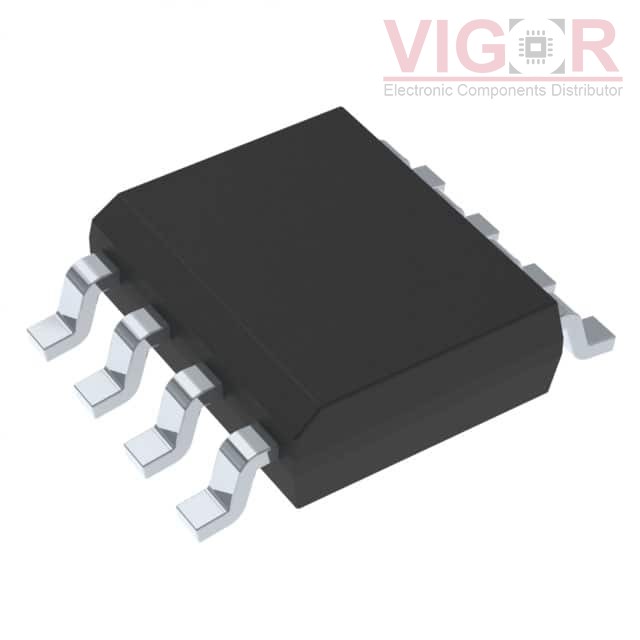

Image is for reference,
please contact us to get the real picture

Part No :: TSM9409CS RLG

Manufacturer: TSC (Taiwan Semiconductor)

Description: MOSFET P-CHANNEL 60V 3.5A 8SOP

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: TSM9409CS RLG PDF

Availability: 2062 pieces

Unit Price: ~~$0.88000~~

Current price of TSM9409CS RLG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TSM9409CS RLG Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	60 V
Current - Continuous Drain (Id) @ 25°C:	3.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	155mOhm @ 3.5A, 10V
Vgs(th) (Max) @ Id:	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	6 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	540 pF @ 30 V
FET Feature:	-
Power Dissipation (Max):	3W (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	8-SOP
Package / Case:	8-SOIC (0.154", 3.90mm Width)

Please confirm the specifications of the products when ordering.
