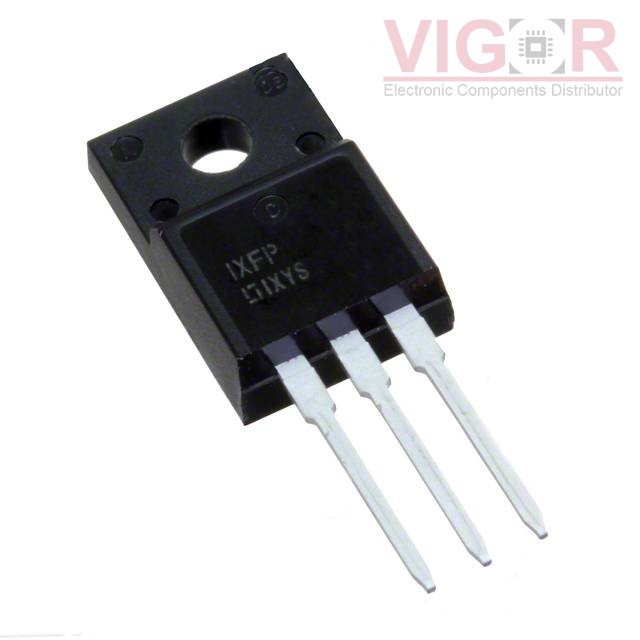

IXFP14N85XM

Part No :: IXFP14N85XM

Manufacturer: Wickmann / Littelfuse

Description: MOSFET N-CHANNEL 850V 14A TO220

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: IXFP14N85XM PDF

Availability: 100178650 pieces

Unit Price: ~~$5.55000~~

Current price of IXFP14N85XM is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

IXFP14N85XM Specifications

Type	Description
Series:	HiPerFET™
Package:	Tube
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	850 V
Current - Continuous Drain (Id) @ 25°C:	14A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	550mOhm @ 7A, 10V
Vgs(th) (Max) @ Id:	5.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	30 nC @ 10 V
Vgs (Max):	±30V
Input Capacitance (Ciss) (Max) @ Vds:	1043 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	38W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	TO-220
Package / Case:	TO-220-3 Full Pack

Please confirm the specifications of the products when ordering.
