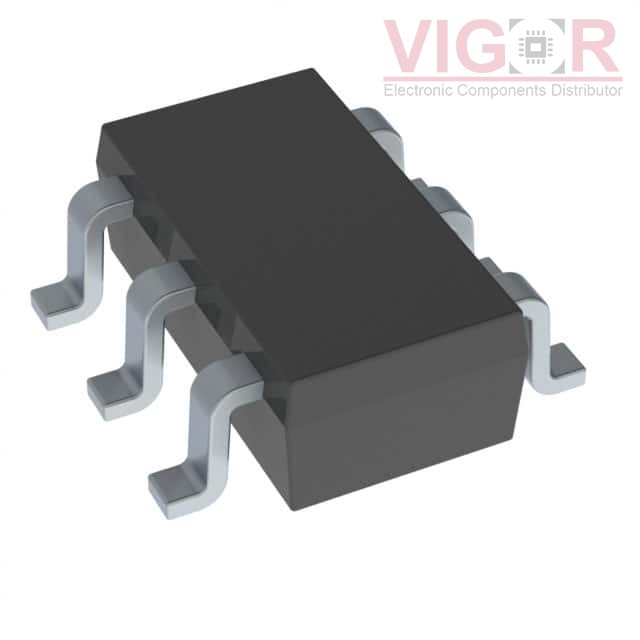

SQ3419AEEV-T1_GE3

Part No :: SQ3419AEEV-T1_GE3

Manufacturer: Vishay / Siliconix

Description: MOSFET P-CHANNEL 40V 6.9A 6TSOP

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: SQ3419AEEV-T1_GE3 PDF

Availability: 17387 pieces

Unit Price: ~~$0.67000~~

Current price of SQ3419AEEV-T1_GE3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SQ3419AEEV-T1_GE3 Specifications

Type	Description
Series:	Automotive, AEC-Q101, TrenchFET®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	40 V
Current - Continuous Drain (Id) @ 25°C:	6.9A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	61mOhm @ 2.5A, 10V
Vgs(th) (Max) @ Id:	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	12.5 nC @ 4.5 V
Vgs (Max):	±12V
Input Capacitance (Ciss) (Max) @ Vds:	975 pF @ 20 V
FET Feature:	-
Power Dissipation (Max):	5W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	6-TSOP
Package / Case:	SOT-23-6 Thin, TSOT-23-6
