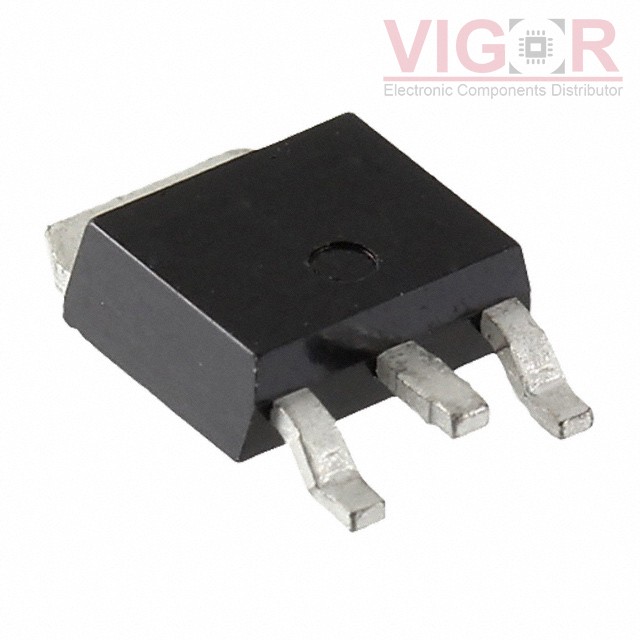

2SK326800L

Part No :: 2SK326800L

Manufacturer: Panasonic

Description: MOSFET N-CH 100V 15A U-DL

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: 2SK326800L PDF

Availability: 1139 pieces

Current price of 2SK326800L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

2SK326800L Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	100 V
Current - Continuous Drain (Id) @ 25°C:	15A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	100mOhm @ 12A, 10V
Vgs(th) (Max) @ Id:	4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	-
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	960 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	1W (Ta), 20W (Tc)
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	U-DL
Package / Case:	TO-252-4, DPak (3 Leads + Tab)

Please confirm the specifications of the products when ordering.
