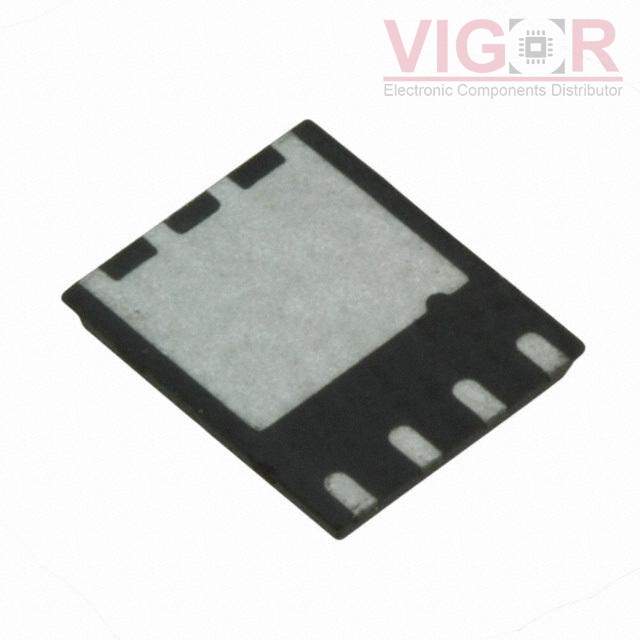

IRFH5004TRPBF

Part No :: IRFH5004TRPBF

Manufacturer: IR (Infineon Technologies)

Description: MOSFET N-CH 40V 28A/100A 8PQFN

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: IRFH5004TRPBF PDF

Availability: 4000 pieces

Current price of IRFH5004TRPBF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

IRFH5004TRPBF Specifications

Type	Description
Series:	HEXFET®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	40 V
Current - Continuous Drain (Id) @ 25°C:	28A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	2.6mOhm @ 50A, 10V
Vgs(th) (Max) @ Id:	4V @ 150µA
Gate Charge (Qg) (Max) @ Vgs:	110 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	4490 pF @ 20 V
FET Feature:	-
Power Dissipation (Max):	3.6W (Ta), 156W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	8-PQFN (5x6)
Package / Case:	8-PowerVDFN

Please confirm the specifications of the products when ordering.
