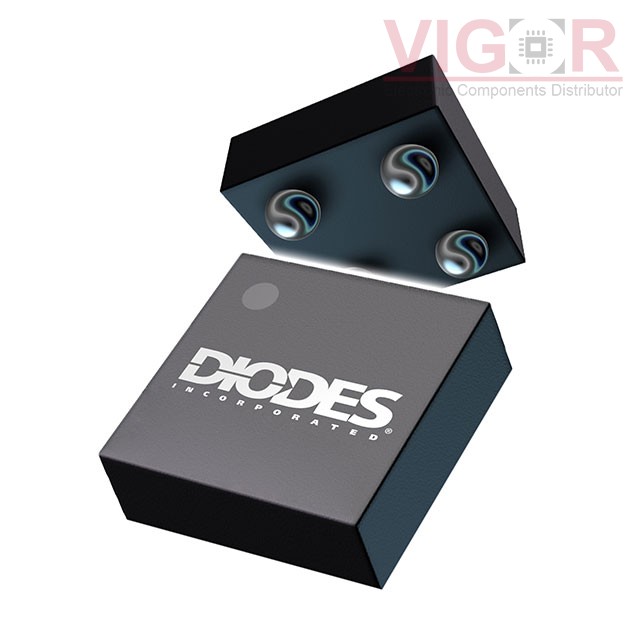

DMN2080UCB4-7

Part No :: DMN2080UCB4-7

Manufacturer: Zetex Semiconductors (Diodes Inc.)

Description: MOSFET N-CH 20V 3A X2-WLB0606-4

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: DMN2080UCB4-7 PDF

Availability: 0 pieces

Current price of DMN2080UCB4-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DMN2080UCB4-7 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	3A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	1.5V, 4.5V
Rds On (Max) @ Id, Vgs:	56mOhm @ 1A, 4.5V
Vgs(th) (Max) @ Id:	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	7.4 nC @ 4.5 V
Vgs (Max):	±8V
Input Capacitance (Ciss) (Max) @ Vds:	540 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	710mW
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	X2-WLB0606-4
Package / Case:	4-XFBGA, WLBGA
