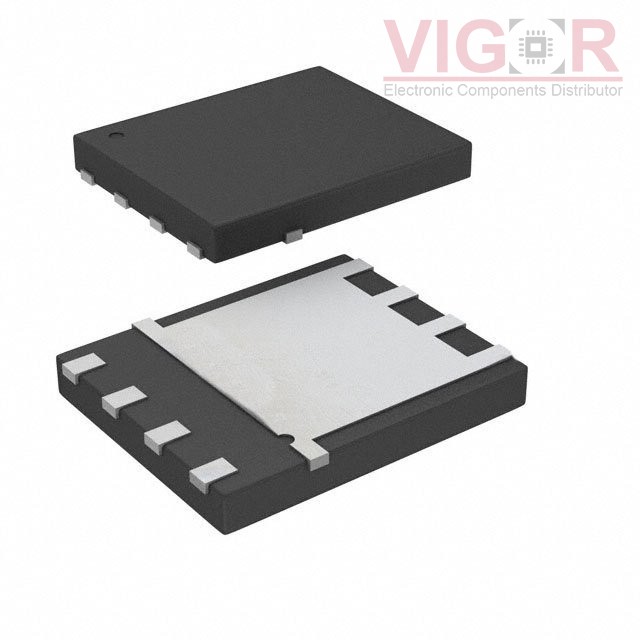

FDMS003N08C

Part No :: FDMS003N08C

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: MOSFET N-CH 80V 22A/147A POWER56

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: FDMS003N08C PDF

Availability: 0 pieces

Current price of FDMS003N08C is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FDMS003N08C Specifications

Type	Description
Series:	PowerTrench®
Package:	Tape & Reel (TR)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	80 V
Current - Continuous Drain (Id) @ 25°C:	22A (Ta), 147A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	6V, 10V
Rds On (Max) @ Id, Vgs:	3.1mOhm @ 56A, 10V
Vgs(th) (Max) @ Id:	4V @ 310µA
Gate Charge (Qg) (Max) @ Vgs:	73 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	5350 pF @ 40 V
FET Feature:	-
Power Dissipation (Max):	2.7W (Ta), 125W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	Power56
Package / Case:	8-PowerTDFN
