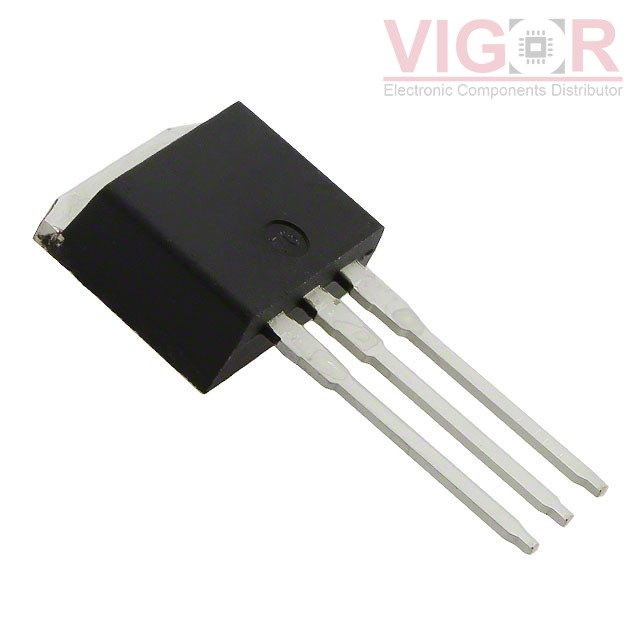

IRLZ24LPBF

Part No :: IRLZ24LPBF

Manufacturer: Vishay / Siliconix

Description: MOSFET N-CH 60V 17A TO262-3

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: IRLZ24LPBF PDF

Availability: 120 pieces

Current price of IRLZ24LPBF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

IRLZ24LPBF Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	60 V
Current - Continuous Drain (Id) @ 25°C:	17A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4V, 5V
Rds On (Max) @ Id, Vgs:	100mOhm @ 10A, 5V
Vgs(th) (Max) @ Id:	2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	18 nC @ 5 V
Vgs (Max):	±10V
Input Capacitance (Ciss) (Max) @ Vds:	870 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	3.7W (Ta), 60W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	TO-262-3
Package / Case:	TO-262-3 Long Leads, I²Pak, TO-262AA
