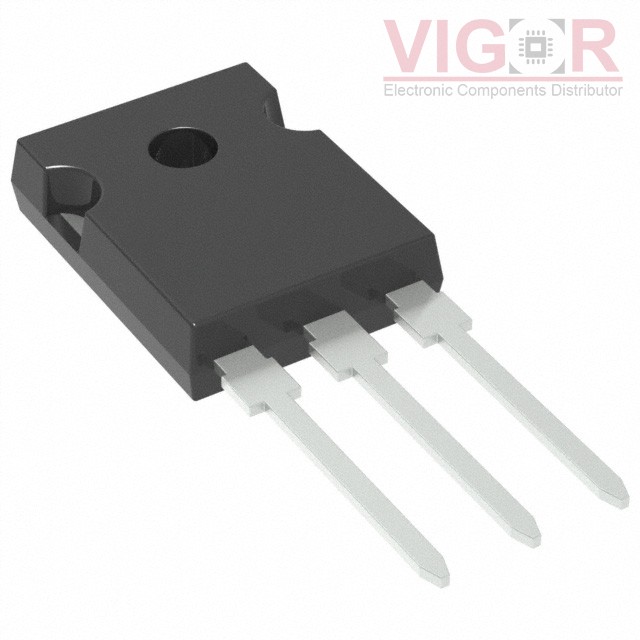

R6050JNZ4C13

Part No :: R6050JNZ4C13

Manufacturer: ROHM Semiconductor

Description: MOSFET N-CH 600V 50A TO247G

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: R6050JNZ4C13 PDF

Availability: 596 pieces

Current price of R6050JNZ4C13 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

R6050JNZ4C13 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	600 V
Current - Continuous Drain (Id) @ 25°C:	50A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	15V
Rds On (Max) @ Id, Vgs:	83mOhm @ 25A, 15V
Vgs(th) (Max) @ Id:	7V @ 5mA
Gate Charge (Qg) (Max) @ Vgs:	120 nC @ 15 V
Vgs (Max):	±30V
Input Capacitance (Ciss) (Max) @ Vds:	4500 pF @ 100 V
FET Feature:	-
Power Dissipation (Max):	615W (Tc)
Operating Temperature:	150°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	TO-247G
Package / Case:	TO-247-3
