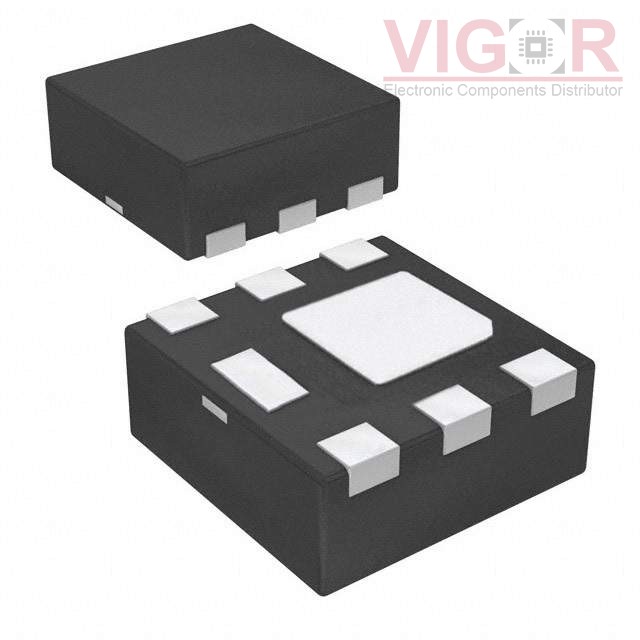

FDMA7670

Part No :: FDMA7670

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: MOSFET N-CH 30V 11A 6MICROFET

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: FDMA7670 PDF

Availability: 4200 pieces

Current price of FDMA7670 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FDMA7670 Specifications

Type	Description
Series:	PowerTrench®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	30 V
Current - Continuous Drain (Id) @ 25°C:	11A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	15mOhm @ 11A, 10V
Vgs(th) (Max) @ Id:	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	22 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	1360 pF @ 15 V
FET Feature:	-
Power Dissipation (Max):	2.4W (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	6-MicroFET (2x2)
Package / Case:	6-VDFN Exposed Pad

Please confirm the specifications of the products when ordering.
