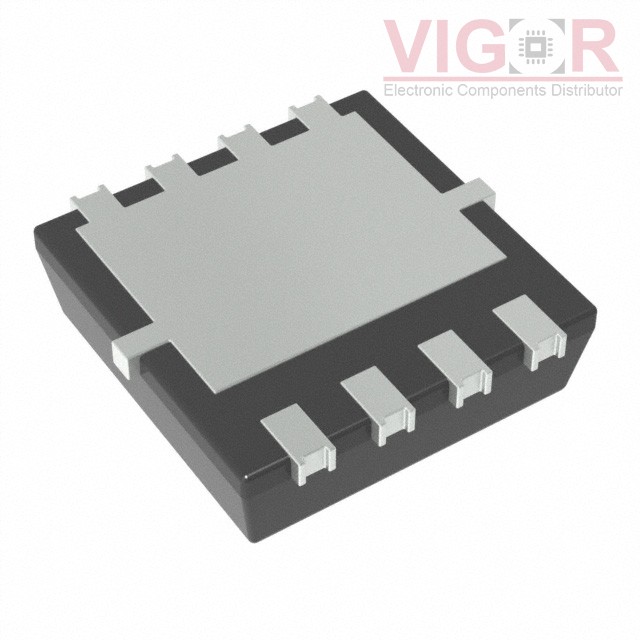

DMT3009LFVW-7

Part No :: DMT3009LFVW-7

Manufacturer: Zetex Semiconductors (Diodes Inc.)

Description: MOSFET N-CH 30V 12A PWRDI3333

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: DMT3009LFVW-7 PDF

Availability: 0 pieces

Current price of DMT3009LFVW-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DMT3009LFVW-7 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	30 V
Current - Continuous Drain (Id) @ 25°C:	12A (Ta), 50A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	3.8V, 10V
Rds On (Max) @ Id, Vgs:	11mOhm @ 14.4A, 10V
Vgs(th) (Max) @ Id:	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	12 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	823 pF @ 15 V
FET Feature:	-
Power Dissipation (Max):	2.3W (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount, Wettable Flank
Supplier Device Package:	PowerDI3333-8 (SWP) Type UX
Package / Case:	8-PowerVDFN

Please confirm the specifications of the products when ordering.
