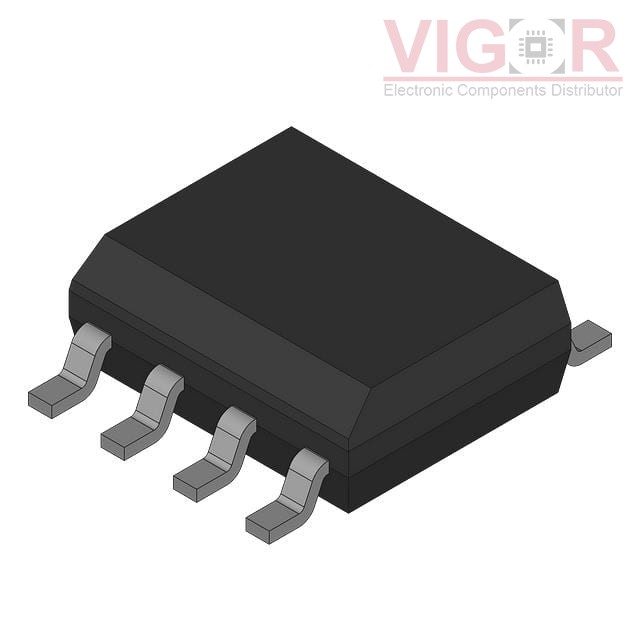

HAT2165N-EL-E

Part No :: HAT2165N-EL-E

Manufacturer: VIGOR

Description: MOSFET N-CH 30V 55A 8LFPAK

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: HAT2165N-EL-E PDF

Availability: 2500 pieces

Current price of HAT2165N-EL-E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

HAT2165N-EL-E Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	30 V
Current - Continuous Drain (Id) @ 25°C:	55A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	-
Rds On (Max) @ Id, Vgs:	3.6mOhm @ 27.5A, 10V
Vgs(th) (Max) @ Id:	-
Gate Charge (Qg) (Max) @ Vgs:	33 nC @ 4.5 V
Vgs (Max):	-
Input Capacitance (Ciss) (Max) @ Vds:	5.18 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	30W (Tc)
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	8-LFPAK-iV
Package / Case:	8-PowerSOIC (0.154", 3.90mm Width)
