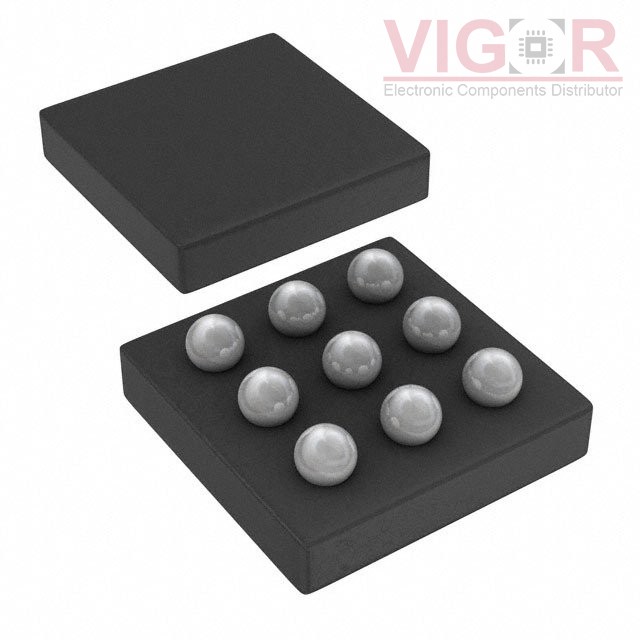

CSD25202W15

Part No :: CSD25202W15

Manufacturer: Texas Instruments

VIGOR # :: 2901675

Description: MOSFET P-CH 20V 4A 9DSBGA

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: CSD25202W15 PDF

Country of origin: -

Date code: -

CSD25202W15 Specifications

Type	Description
Series:	NexFET™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	4A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	1.8V, 4.5V
Rds On (Max) @ Id, Vgs:	26mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id:	1.05V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	7.5 nC @ 4.5 V
Vgs (Max):	-6V
Input Capacitance (Ciss) (Max) @ Vds:	1010 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	500mW (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	9-DSBGA
Package / Case:	9-UFBGA, DSBGA

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Apr 03 - Apr 07 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.2400~~	~~$0.24~~
3000	~~$0.2400~~	~~$720.00~~
6000	~~$0.2320~~	~~$1 392.00~~
