NTMFS6B14NT3G

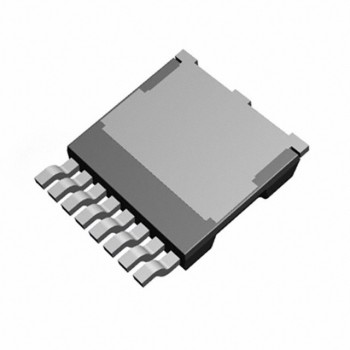

Image is for reference,
please contact us to get the real picture

Part No :: NTMFS6B14NT3G

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: MOSFET N-CH 100V 10A/50A 5DFN

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: NTMFS6B14NT3G PDF

Availability: 0 pieces

Unit Price: ~~$1.23975~~

Current price of NTMFS6B14NT3G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NTMFS6B14NT3G Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	100 V
Current - Continuous Drain (Id) @ 25°C:	10A (Ta), 50A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	6V, 10V
Rds On (Max) @ Id, Vgs:	15mOhm @ 20A, 10V
Vgs(th) (Max) @ Id:	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	20 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	1300 pF @ 50 V
FET Feature:	-
Power Dissipation (Max):	3.1W (Ta), 77W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	5-DFN (5x6) (8-SOFL)
Package / Case:	8-PowerTDFN

Please confirm the specifications of the products when ordering.
