STP4NK60Z

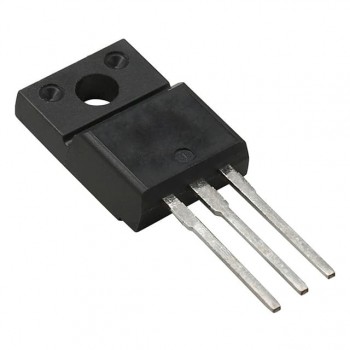

Image is for reference,
please contact us to get the real picture

Part No :: STP4NK60Z

Manufacturer: STMicroelectronics

Description: MOSFET N-CH 600V 4A TO220AB

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: STP4NK60Z PDF

Availability: 1298 pieces

Unit Price: ~~$1.67000~~

Current price of STP4NK60Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

STP4NK60Z Specifications

Type	Description
Series:	SuperMESH™
Package:	Tube
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	600 V
Current - Continuous Drain (Id) @ 25°C:	4A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	2Ohm @ 2A, 10V
Vgs(th) (Max) @ Id:	4.5V @ 50µA
Gate Charge (Qg) (Max) @ Vgs:	26 nC @ 10 V
Vgs (Max):	±30V
Input Capacitance (Ciss) (Max) @ Vds:	510 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	70W (Tc)
Operating Temperature:	150°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	TO-220AB
Package / Case:	TO-220-3
