STN1NF20

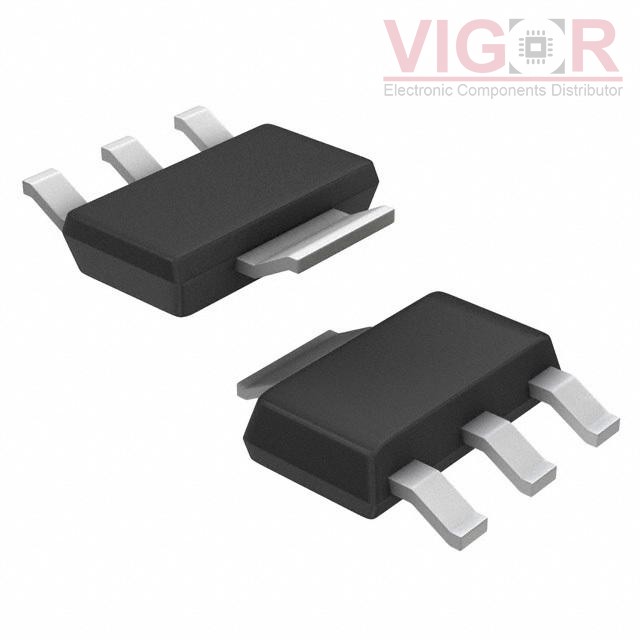

Image is for reference,
please contact us to get the real picture

Part No :: STN1NF20

Manufacturer: STMicroelectronics

Description: MOSFET N-CH 200V 1A SOT-223

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: STN1NF20 PDF

Availability: 2566 pieces

Unit Price: ~~$0.58000~~

Current price of STN1NF20 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

STN1NF20 Specifications

Type	Description
Series:	STripFET™ II
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	200 V
Current - Continuous Drain (Id) @ 25°C:	1A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	1.5Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id:	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	5.7 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	90 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	2W (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	SOT-223
Package / Case:	TO-261-4, TO-261AA

Please confirm the specifications of the products when ordering.
