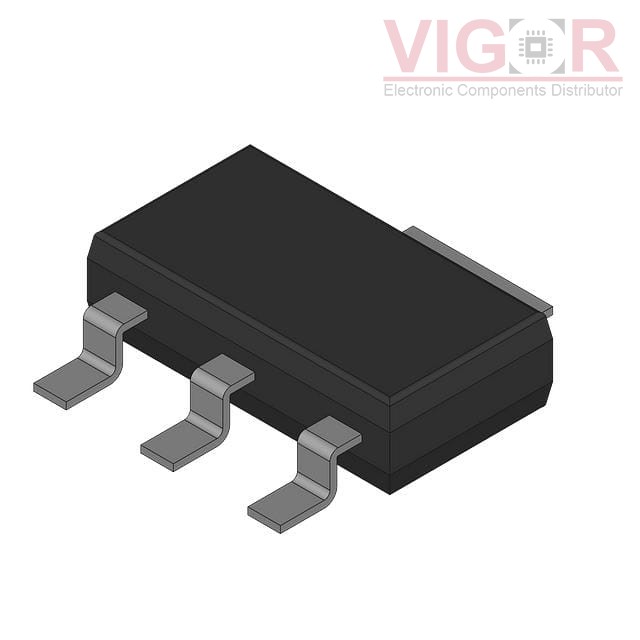

PHT6N06LT,135

Part No :: PHT6N06LT,135

Manufacturer: VIGOR

Description: POWER FIELD-EFFECT TRANSISTOR, 2

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: PHT6N06LT,135 PDF

Availability: 427066 pieces

Unit Price: ~~$0.21000~~

Current price of PHT6N06LT,135 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PHT6N06LT,135 Specifications

Type	Description
Series:	TrenchMOS™
Package:	Bulk
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	55 V
Current - Continuous Drain (Id) @ 25°C:	2.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	5V
Rds On (Max) @ Id, Vgs:	150mOhm @ 5A, 5V
Vgs(th) (Max) @ Id:	2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	4.5 nC @ 5 V
Vgs (Max):	±13V
Input Capacitance (Ciss) (Max) @ Vds:	330 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	1.8W (Ta), 8.3W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	SOT-223
Package / Case:	TO-261-4, TO-261AA

Please confirm the specifications of the products when ordering.
