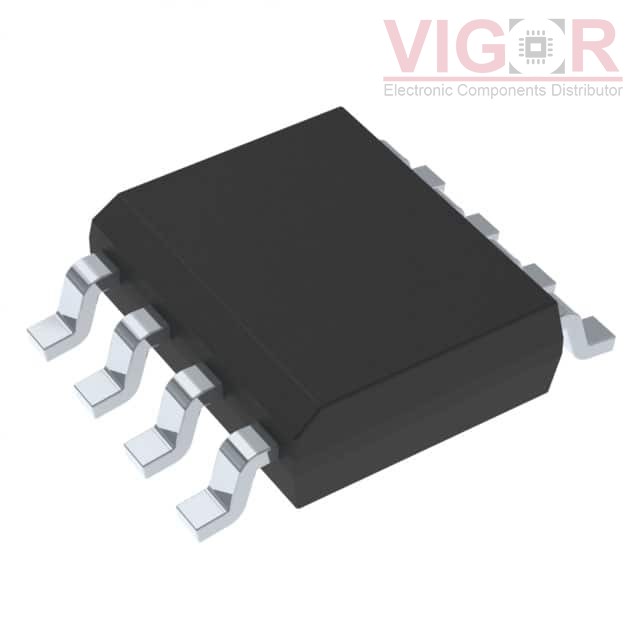

TSM600P03CS RLG

Part No :: TSM600P03CS RLG

Manufacturer: TSC (Taiwan Semiconductor)

Description: MOSFET P-CHANNEL 30V 4.7A 8SOP

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: TSM600P03CS RLG PDF

Availability: 4937 pieces

Unit Price: ~~$0.43000~~

Current price of TSM600P03CS RLG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TSM600P03CS RLG Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	30 V
Current - Continuous Drain (Id) @ 25°C:	4.7A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	60mOhm @ 3A, 10V
Vgs(th) (Max) @ Id:	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	9.6 nC @ 4.5 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	560 pF @ 15 V
FET Feature:	-
Power Dissipation (Max):	2.1W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	8-SOP
Package / Case:	8-SOIC (0.154", 3.90mm Width)
