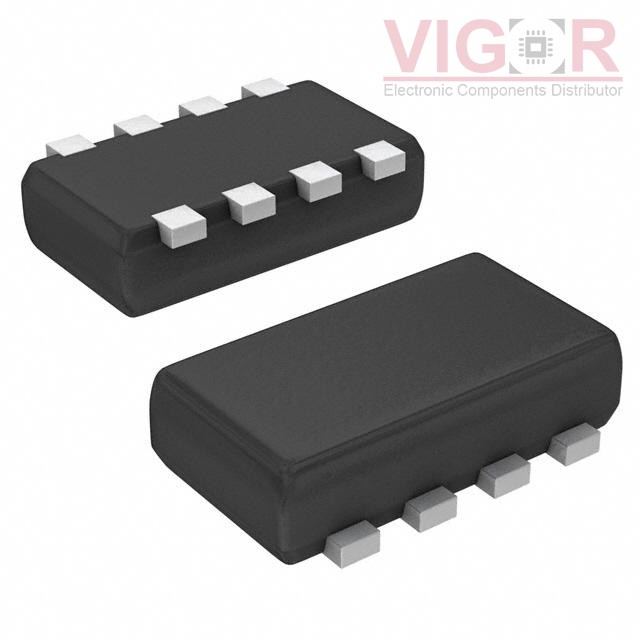

TT8U2TR

Part No :: TT8U2TR

Manufacturer: ROHM Semiconductor

Description: MOSFET P-CH 20V 2.4A 8TSST

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: TT8U2TR PDF

Availability: 850 pieces

Unit Price: ~~$0.45000~~

Current price of TT8U2TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TT8U2TR Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Not For New Designs
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	2.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	1.5V, 4.5V
Rds On (Max) @ Id, Vgs:	105mOhm @ 2.4A, 4.5V
Vgs(th) (Max) @ Id:	1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	6.7 nC @ 4.5 V
Vgs (Max):	±10V
Input Capacitance (Ciss) (Max) @ Vds:	850 pF @ 10 V
FET Feature:	Schottky Diode (Isolated)
Power Dissipation (Max):	1.25W (Ta)
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	8-TSST
Package / Case:	8-SMD, Flat Lead

Please confirm the specifications of the products when ordering.
