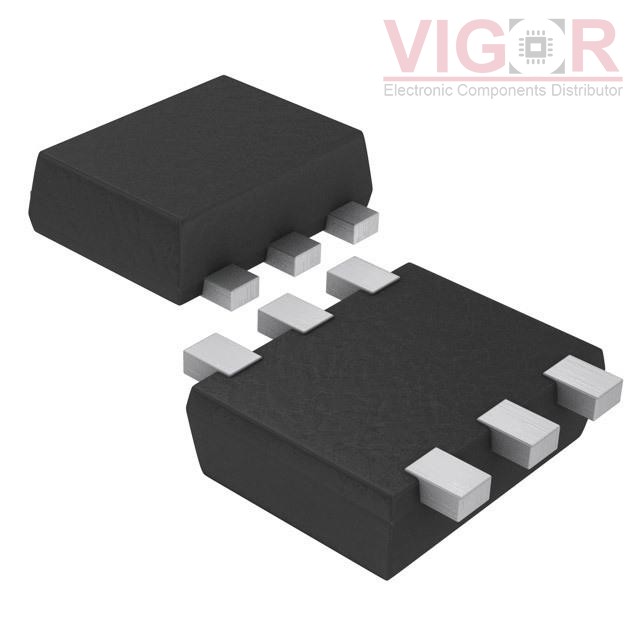

MCH6421-TL-W

Part No :: MCH6421-TL-W

Manufacturer: VIGOR

Description: MOSFET N-CH 20V 5.5A MCPH6

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: MCH6421-TL-W PDF

Availability: 296814 pieces

Current price of MCH6421-TL-W is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

MCH6421-TL-W Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	5.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	1.8V, 4.5V
Rds On (Max) @ Id, Vgs:	38mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id:	1.3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	5.1 nC @ 4.5 V
Vgs (Max):	±12V
Input Capacitance (Ciss) (Max) @ Vds:	410 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	1.5W (Ta)
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	SC-88FL/MCPH6
Package / Case:	6-SMD, Flat Leads
