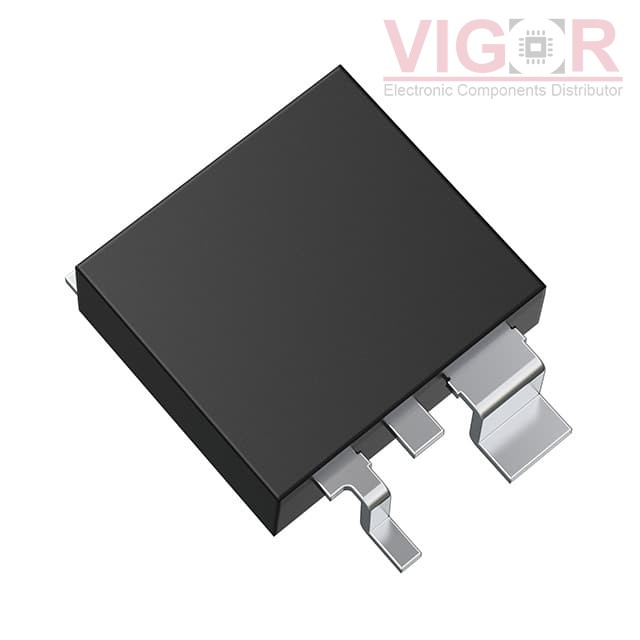

TK33S10N1Z,LXHQ

Part No :: TK33S10N1Z,LXHQ

Manufacturer: Toshiba Electronic Devices and Storage Corporation

Description: MOSFET N-CH 100V 33A DPAK

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: TK33S10N1Z,LXHQ PDF

Availability: 3562 pieces

Current price of TK33S10N1Z,LXHQ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TK33S10N1Z,LXHQ Specifications

Type	Description
Series:	U-MOSVIII-H
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	100 V
Current - Continuous Drain (Id) @ 25°C:	33A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	9.7mOhm @ 16.5A, 10V
Vgs(th) (Max) @ Id:	4V @ 500µA
Gate Charge (Qg) (Max) @ Vgs:	28 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	2050 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	125W (Tc)
Operating Temperature:	175°C
Mounting Type:	Surface Mount
Supplier Device Package:	DPAK+
Package / Case:	TO-252-3, DPak (2 Leads + Tab), SC-63
