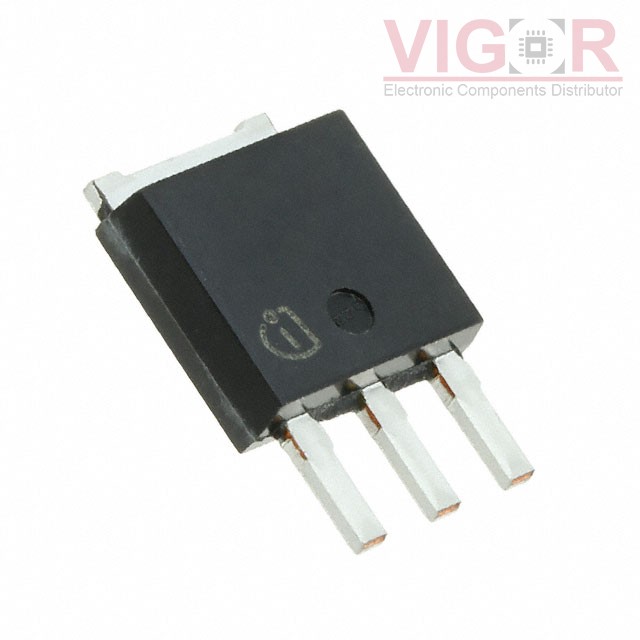

IPSA70R2K0P7SAKMA1

Part No :: IPSA70R2K0P7SAKMA1

Manufacturer: IR (Infineon Technologies)

Description: MOSFET N-CH 700V 3A TO251-3

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: IPSA70R2K0P7SAKMA1 PDF

Availability: 217 pieces

Current price of IPSA70R2K0P7SAKMA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

IPSA70R2K0P7SAKMA1 Specifications

Type	Description
Series:	CoolMOS™ P7
Package:	Tube
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	700 V
Current - Continuous Drain (Id) @ 25°C:	3A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	2Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id:	3.5V @ 30µA
Gate Charge (Qg) (Max) @ Vgs:	3.8 nC @ 400 V
Vgs (Max):	±16V
Input Capacitance (Ciss) (Max) @ Vds:	130 pF @ 400 V
FET Feature:	-
Power Dissipation (Max):	17.6W (Tc)
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	PG-TO251-3-347
Package / Case:	TO-251-3 Stub Leads, IPak
