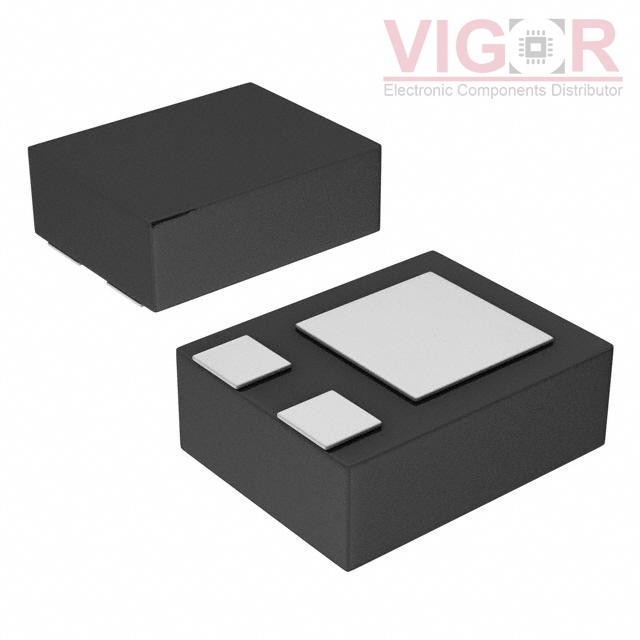

DMN2320UFB4-7B

Part No :: DMN2320UFB4-7B

Manufacturer: Zetex Semiconductors (Diodes Inc.)

VIGOR # :: 2902497

Description: MOSFET N-CH 20V 1A X2-DFN1006-3

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: DMN2320UFB4-7B PDF

Country of origin: -

Date code: -

DMN2320UFB4-7B Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	1A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	1.8V, 4.5V
Rds On (Max) @ Id, Vgs:	320mOhm @ 500mA, 4.5V
Vgs(th) (Max) @ Id:	950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	0.89 nC @ 4.5 V
Vgs (Max):	±8V
Input Capacitance (Ciss) (Max) @ Vds:	71 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	520mW (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	X2-DFN1006-3
Package / Case:	3-XFDFN
