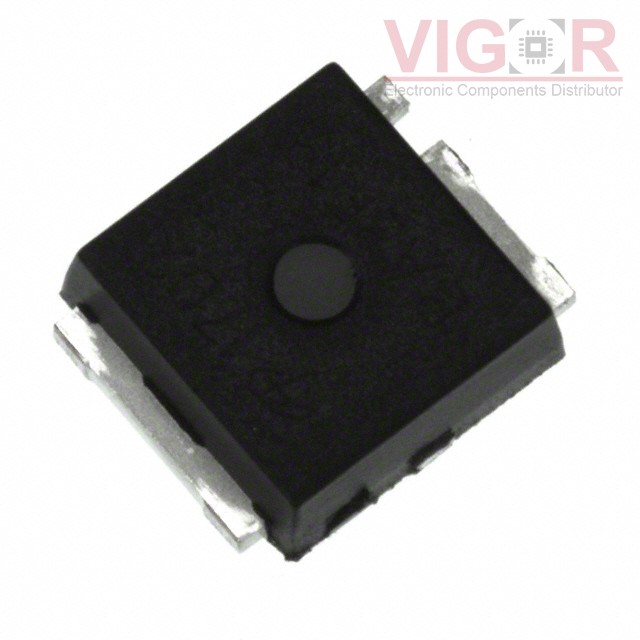

AOL1404G

Part No :: AOL1404G

Manufacturer: Alpha and Omega Semiconductor, Inc.

Description: MOSFET N-CH 20V 30A/46A ULTRASO8

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: AOL1404G PDF

Availability: 0 pieces

Current price of AOL1404G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AOL1404G Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	30A (Ta), 46A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	2.5V, 4.5V
Rds On (Max) @ Id, Vgs:	4.6mOhm @ 20A, 4.5V
Vgs(th) (Max) @ Id:	1.25V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	-
Vgs (Max):	±12V
Input Capacitance (Ciss) (Max) @ Vds:	3300 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	6.2W (Ta), 50W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	UltraSO-8™
Package / Case:	3-PowerSMD, Flat Leads

Please confirm the specifications of the products when ordering.
