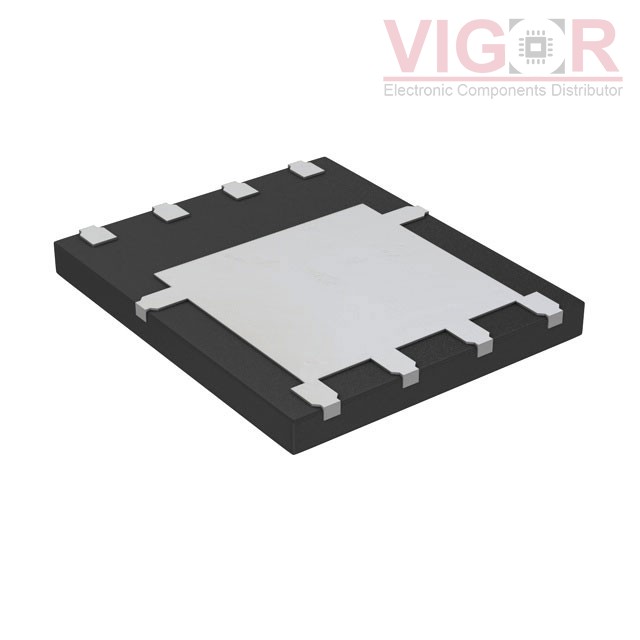

SIDR390DP-T1-GE3

Part No :: SIDR390DP-T1-GE3

Manufacturer: Vishay / Siliconix

Description: MOSFET N-CH 30V 69.9A/100A PPAK

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: SIDR390DP-T1-GE3 PDF

Availability: 1336 pieces

Current price of SIDR390DP-T1-GE3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SIDR390DP-T1-GE3 Specifications

Type	Description
Series:	TrenchFET® Gen IV
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	30 V
Current - Continuous Drain (Id) @ 25°C:	69.9A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	0.8mOhm @ 20A, 10V
Vgs(th) (Max) @ Id:	2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	153 nC @ 10 V
Vgs (Max):	+20V, -16V
Input Capacitance (Ciss) (Max) @ Vds:	10180 pF @ 15 V
FET Feature:	-
Power Dissipation (Max):	6.25W (Ta), 125W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	PowerPAK® SO-8DC
Package / Case:	PowerPAK® SO-8
