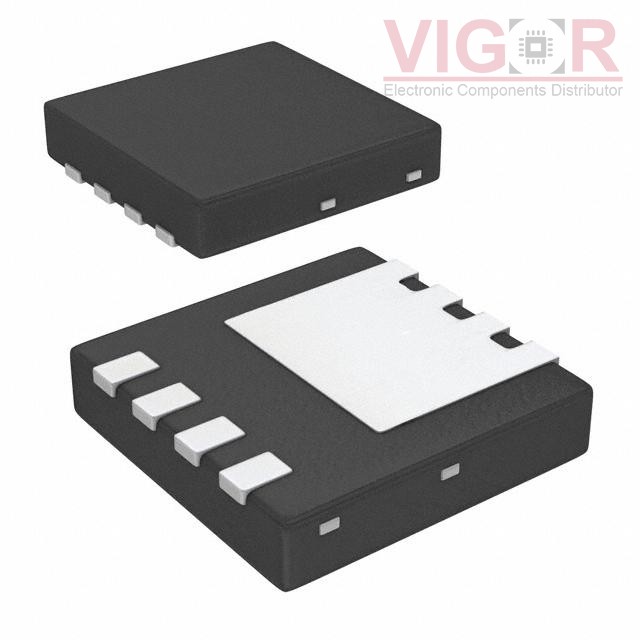

FDMC6688P

Part No :: FDMC6688P

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: MOSFET P-CH 20V 14A/56A 8PQFN

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: FDMC6688P PDF

Availability: 0 pieces

Current price of FDMC6688P is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FDMC6688P Specifications

Type	Description
Series:	PowerTrench®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	14A (Ta), 56A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	1.8V, 4.5V
Rds On (Max) @ Id, Vgs:	6.5mOhm @ 14A, 4.5V
Vgs(th) (Max) @ Id:	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	61 nC @ 4.5 V
Vgs (Max):	±8V
Input Capacitance (Ciss) (Max) @ Vds:	7435 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	2.3W (Ta), 30W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	8-PQFN (3.3x3.3), Power33
Package / Case:	8-PowerWDFN
