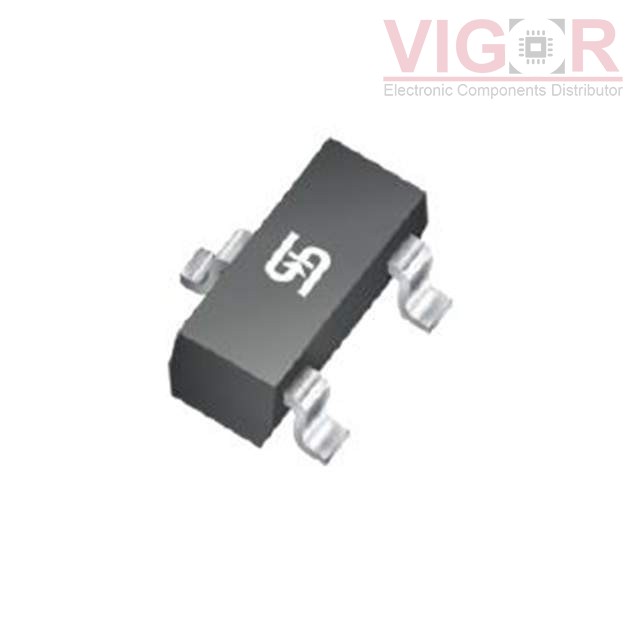

TSM2301ACX RFG

Part No :: TSM2301ACX RFG

Manufacturer: TSC (Taiwan Semiconductor)

VIGOR # :: 2902656

Description: MOSFET P-CHANNEL 20V 2.8A SOT23

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: TSM2301ACX RFG PDF

Country of origin: -

Date code: -

TSM2301ACX RFG Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	2.8A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	2.5V, 4.5V
Rds On (Max) @ Id, Vgs:	130mOhm @ 2.8A, 4.5V
Vgs(th) (Max) @ Id:	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	4.5 nC @ 4.5 V
Vgs (Max):	±12V
Input Capacitance (Ciss) (Max) @ Vds:	480 pF @ 15 V
FET Feature:	-
Power Dissipation (Max):	700mW (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	SOT-23
Package / Case:	TO-236-3, SC-59, SOT-23-3
