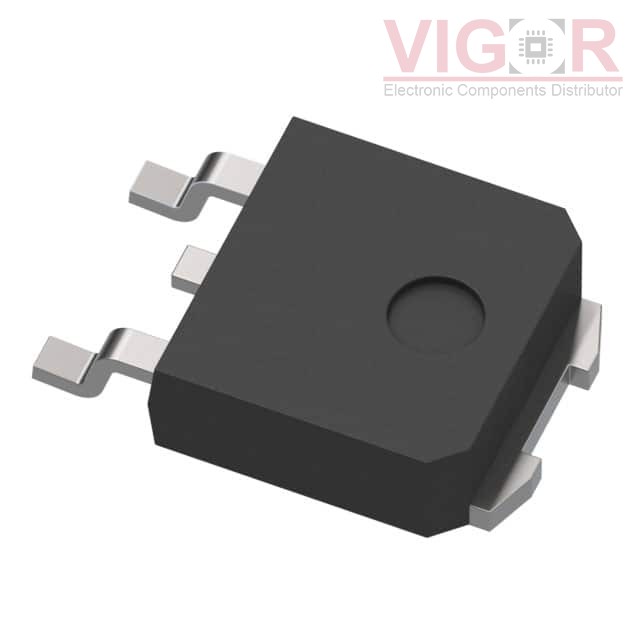

STD10NF30

Part No :: STD10NF30

Manufacturer: STMicroelectronics

Description: MOSFET N-CHANNEL 300V 10A DPAK

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: STD10NF30 PDF

Availability: 1686 pieces

Current price of STD10NF30 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

STD10NF30 Specifications

Type	Description
Series:	Automotive, AEC-Q101, MESH OVERLAY™, MESH OVERLAY™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	300 V
Current - Continuous Drain (Id) @ 25°C:	10A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	330mOhm @ 5A, 10V
Vgs(th) (Max) @ Id:	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	23 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	780 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	103W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	DPAK
Package / Case:	TO-252-3, DPak (2 Leads + Tab), SC-63
