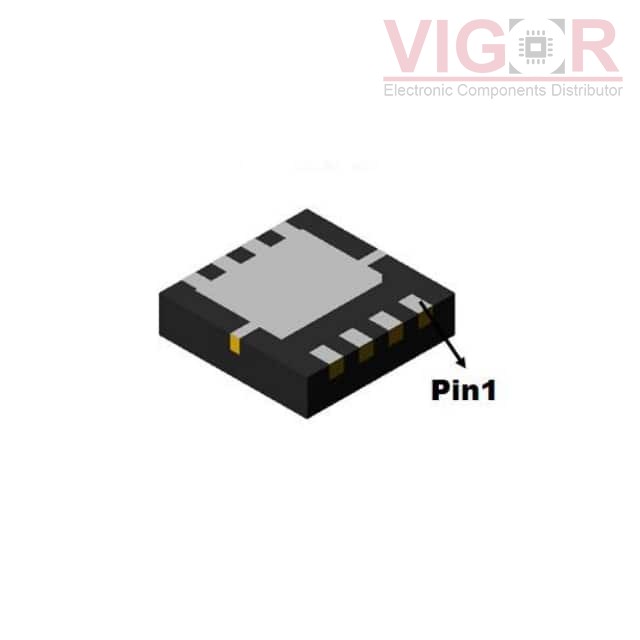

YJQ40P03A-F1-1100HF

Part No :: YJQ40P03A-F1-1100HF

Manufacturer

Description: P-CH MOSFET 30V 40A DFN3333-8L

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: YJQ40P03A-F1-1100HF PDF

Availability: 0 pieces

Current price of YJQ40P03A-F1-1100HF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

YJQ40P03A-F1-1100HF Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	30 V
Current - Continuous Drain (Id) @ 25°C:	40A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 20V
Rds On (Max) @ Id, Vgs:	13mOhm @ 20A, 20V
Vgs(th) (Max) @ Id:	2.8V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	40.1 nC @ 10 V
Vgs (Max):	±25V
Input Capacitance (Ciss) (Max) @ Vds:	2152 pF @ 15 V
FET Feature:	-
Power Dissipation (Max):	32W (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	8-DFN (3.3x3.3)
Package / Case:	8-PowerVDFN
