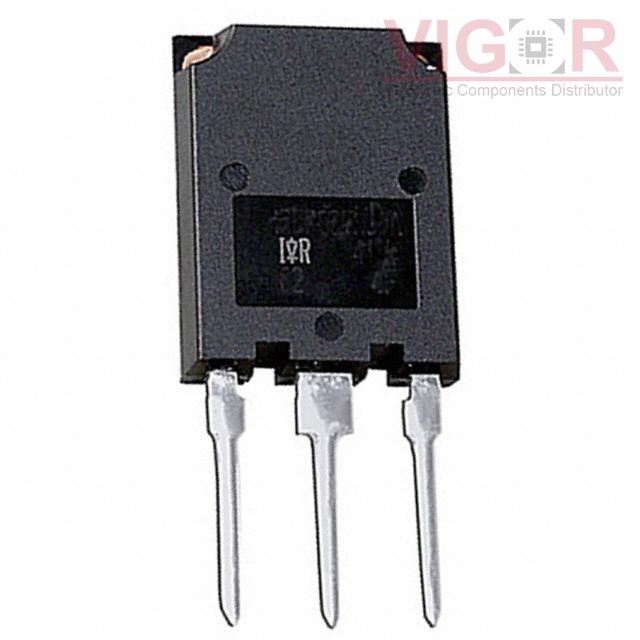

Current price of IRFPS3810PBF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]
Type | Description |
---|---|
Series: | HEXFET® |
Package: | Bulk |
Part Status: | Active |
FET Type: | N-Channel |
Technology: | MOSFET (Metal Oxide) |
Drain to Source Voltage (Vdss): | 100 V |
Current - Continuous Drain (Id) @ 25°C: | 170A (Tc) |
Drive Voltage (Max Rds On, Min Rds On): | - |
Rds On (Max) @ Id, Vgs: | 9mOhm @ 100A, 10V |
Vgs(th) (Max) @ Id: | 5V @ 250µA |
Gate Charge (Qg) (Max) @ Vgs: | 390 nC @ 10 V |
Vgs (Max): | ±30V |
Input Capacitance (Ciss) (Max) @ Vds: | 6790 pF @ 25 V |
FET Feature: | - |
Power Dissipation (Max): | 580W (Tc) |
Operating Temperature: | -55°C ~ 175°C (TJ) |
Mounting Type: | Through Hole |
Supplier Device Package: | SUPER-247 |
Package / Case: | TO-274AA |
