IRFB3806PBF

Part No :: IRFB3806PBF

Manufacturer: IR (Infineon Technologies)

VIGOR # :: 2903172

Description: MOSFET N-CH 60V 43A TO220AB

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: IRFB3806PBF PDF

Country of origin: -

Date code: -

IRFB3806PBF Specifications

Type	Description
Series:	HEXFET®
Package:	Tube
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	60 V
Current - Continuous Drain (Id) @ 25°C:	43A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	15.8mOhm @ 25A, 10V
Vgs(th) (Max) @ Id:	4V @ 50µA
Gate Charge (Qg) (Max) @ Vgs:	30 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	1150 pF @ 50 V
FET Feature:	-
Power Dissipation (Max):	71W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	TO-220AB
Package / Case:	TO-220-3

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1350

Shipped from

HK warehouse

Expected Shipping Date

Dec 31 - Jan 04 2025

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.95~~	~~$0.95~~
10	~~$0.85~~	~~$8.47~~
100	~~$0.68~~	~~$67.86~~
500	~~$0.54~~	~~$268.13~~
1000	~~$0.43~~	~~$432.76~~

Current price of IRFB3806PBF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

PSMN3R3-40YS,115

MOSFET N-CH 40V 100A LFPAK56

DMT3009UFVW-13

MOSFET N-CH 30V 10.6A/30A PWRDI

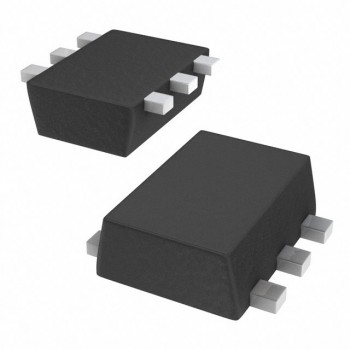

SSM6J422TU,LF
