IPL60R185P7AUMA1

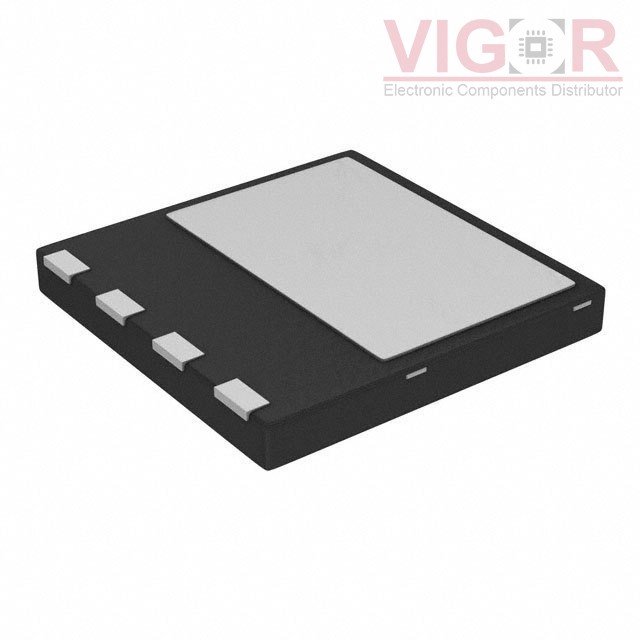

Product image
Product thumb
Part No :

IPL60R185P7AUMA1

Manufacturer
IR (Infineon Technologies)
VIGOR # :

2903223

Description
MOSFET N-CH 650V 19A 4VSON
Catalog
Transistors - FETs, MOSFETs - Single
DataSheet
IPL60R185P7AUMA1 PDF
Country of origin
-
Date code
-
ads
IPL60R185P7AUMA1 Specifications
Type Description
Series:CoolMOS™ P7
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):650 V
Current - Continuous Drain (Id) @ 25°C:19A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:185mOhm @ 5.6A, 10V
Vgs(th) (Max) @ Id:4V @ 280µA
Gate Charge (Qg) (Max) @ Vgs:25 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:1081 pF @ 400 V
FET Feature:-
Power Dissipation (Max):81W (Tc)
Operating Temperature:-40°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:PG-VSON-4
Package / Case:4-PowerTSFN
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 4460
Shipped from
HK warehouse
Expected Shipping Date
Dec 30 - Jan 03 2025
Pricing(USD)
Quantity Unit Price Ext. Price
1 $2.85 $2.85
3000 $1.53 $4 603.86
6000 $1.48 $8 866.68

Current price of IPL60R185P7AUMA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
DMP45H150DHE-13

DMP45H150DHE-13

MOSFET P-CH 450V 250MA SOT223

FDN028N20

FDN028N20

MOSFET N-CH 20V 6.1A SUPERSOT3

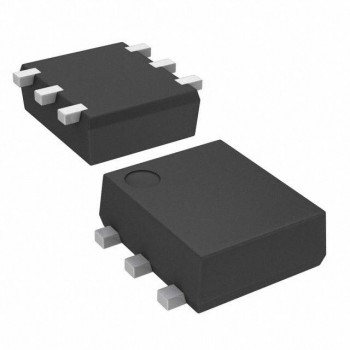

MTM761100LBF
