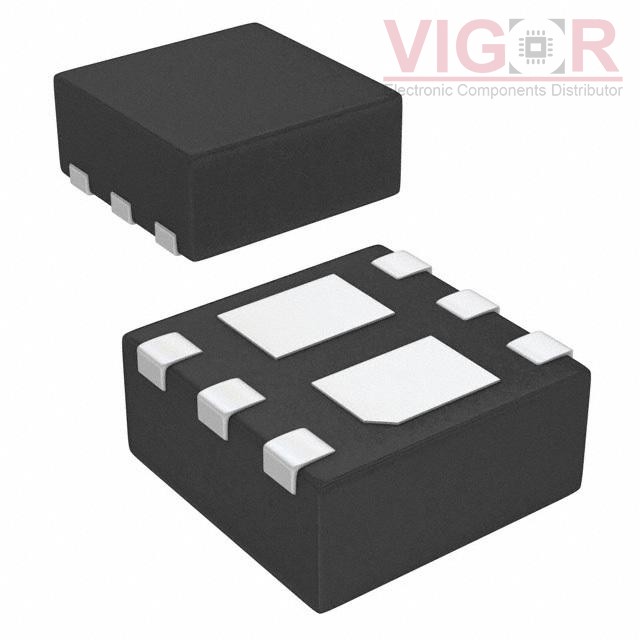

IRL100HS121

Part No :: IRL100HS121

Manufacturer: VIGOR

Description: IRL100HS121 - 12V-300V N-CHANNEL

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: IRL100HS121 PDF

Availability: 4000 pieces

Current price of IRL100HS121 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

IRL100HS121 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	100 V
Current - Continuous Drain (Id) @ 25°C:	11A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	42mOhm @ 6.7A, 10V
Vgs(th) (Max) @ Id:	2.3V @ 10µA
Gate Charge (Qg) (Max) @ Vgs:	5.6 nC @ 4.5 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	440 pF @ 50 V
FET Feature:	-
Power Dissipation (Max):	11.5W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	6-PQFN (2x2)
Package / Case:	6-VDFN Exposed Pad

Please confirm the specifications of the products when ordering.
